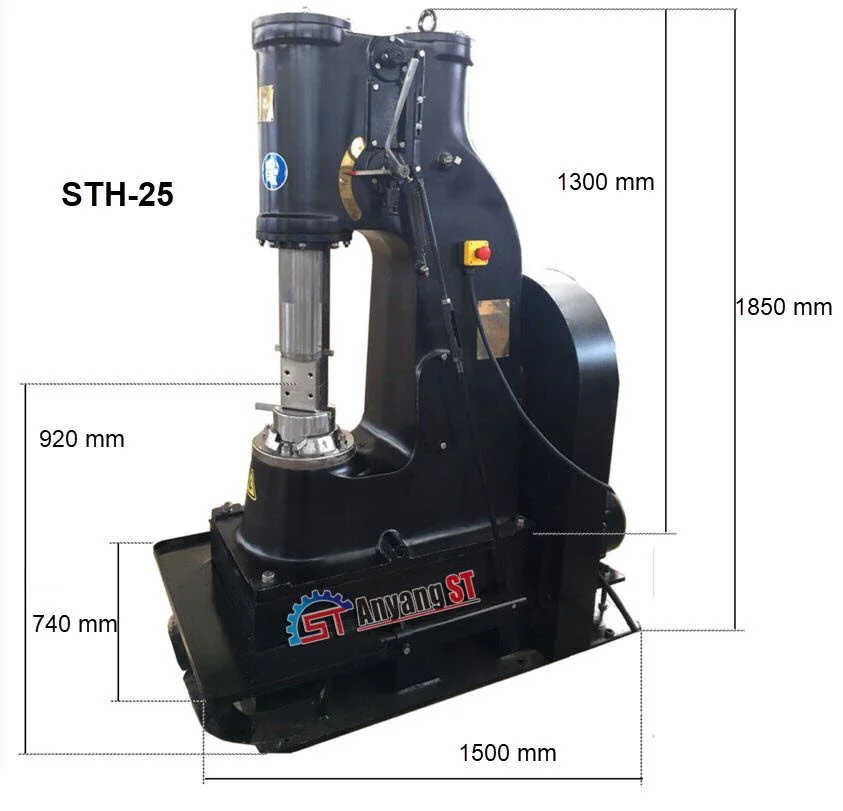

Anyang ST Power Hammer for forging with 25 kg ram weight for forging steel.
Strong cast iron frame, hardened dies in 5CrMnMo for excellent wear resistance.
Runs off a dedicated 240 V standard single phase power outlet using the supplied VFD, the 25 KG model has a heavier ram and a slower hitting frequency than the STH-15 for more power. The 25 kg is capable of medium weight forging work such as axes and hammers within the max material dimensions of 40 x 40 mm square or 45 mm round bar.
Specs:
Ram weight: 25 kg
Hitting frequency: 250 hits/min
Capacity: Square 40 x 40 mm, Round 45 mm diameter steel
Distance between dies: 240 mm
Throat Depth: 235 mm
Motor: 3 KW
Weight: 1070 kg incl base
Packing Size: 1660 x 780 x 2080 mm, packed weight 1180 kg in crate.
